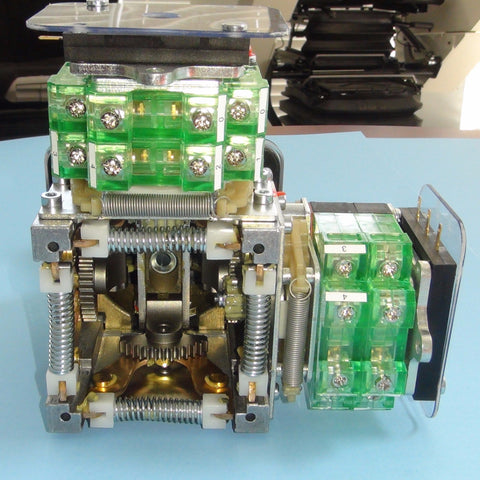

Two-axis Spohn and Burkhardt VNSO master switch with wire wound pots.

VN SO Wire Wound Potentiometer Bridge & Trolley Master Control Joystick

  • $1,99500

Two axis wire-wound potentiometer Master Control Joystick. Spring return to center.

Spohn and Burkhardt part number VNSO 22 FU 14 AK VR 9P1 9P1 2xPQ55

JR Merritt part number VNSO 22 FU 14 AK VR 9P1 9P1 2xPQ55.

Used to control bridge & trolley motion on VFD (inverter) controlled AC cranes.

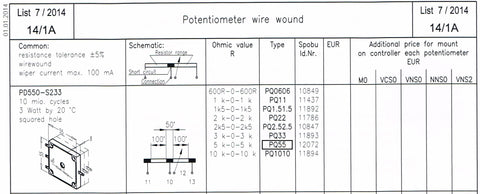

Potentiometers have center tap and vary 5k Ohms in either direction.

Time from order to shipment 1-2 weeks.

HS tariff code 8536509065  German product.

10in. x 8in. x 8in. box

email: product@protact.ca

PHONE: 416-567-4539

FAX: 905-567-0629

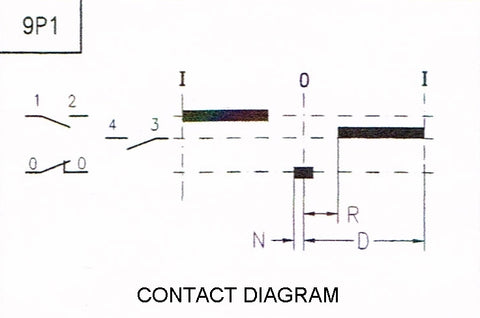

Contact Diagram

Encoder Sheet

Dimension Sheet 1

Dimension Sheet 2
